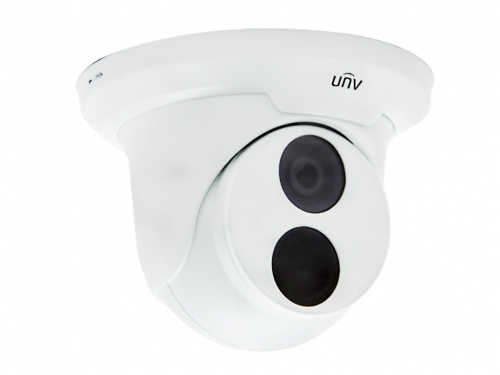

4MP H.265 HD IP WDR IR DOME CAMERA | UN-IPC3614SR3DPF28M
SKU: UN-IPC3614SR3DPF28M
Stock: 100
Stock: 100
Price:
$135.00
$125.00
DESCRIPTION
Features- H.265 Compression
- 1/3", 4 megapixel, progressive scan, CMOS
- Effective Pixels: 2592(H)×1520(V)
- Smart IR, IR anti-reflection window
- IR Distance is up to 98ft (30M)
- 0.02 lux @F1.8, AGC ON; 0Lux
- 4MP (2592×1520): Max.20 fps;
4MP (2560×1440): Max.25 fps - 2D/3D DNR, WDR,
- 2.8mm Fixed Lens
- DC 12V/PoE
- IP66
| DOWNLOADS | |
 |
UN-IPC3614SR3DPFM Spec. Sheet |
|
Uniview IPC3600 Quick Start Guide |
|
Uniview IP Cameras User Manual |
|
Uniview IP Cameras Installation Guide |
SPECIFICATION
| SYSTEM | |
| Compression | H.265 / H.264 / MJPEG |
| CAMERA | |
| Image Sensor | 1/3", 4megapixel, progressive scan, CMOS |
| Image Resolution | 2592 × 1520 |
| Electronic Shutter | Auto/Manual, 1/6~1/100000 s |
| Mini. Illumination | Colour: 0.02 Lux (F1.8, AGC ON); 0 Lux with IR on |
| Lens Focal Length | 2.8mm@F1.8 Fixed Lens |
| Adjustment Range | Pan: 0°~360° , Tilt: 0° ~ 77°, Rotation: 0° ~ 360° |
| CAMERA FEATURES | |
| IR LEDs | Smart IR |
| IR LEDs Distance | Up to 98ft (30m) |
| Day / Night | IR-cut filter with auto switch (ICR) |
| Evaluative Metering | Supported |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D/3DNR |
| Privacy Masking | Up to 8 areas |
| Motion Detection | Up to 2 areas |
| White Balance | Auto / Manual |
| WDR | 120 dB |
| VIDEO | |
| Frame Rate | 4MP (2592×1520): Max.20 fps; 4MP (2560×1440): Max.25 fps; 3MP (2048×1520): Max.30 fps; 1080P (1920×1080): Max. 30 fps |
| ROI | Supported ROI Supported |
| DISPLAY | |
| OSD | Up to 8 OSDs |
| LENS | |
| Angle of View | 101.8° |
| SPECIAL FEATURES | |
| Behavior Detection | Intrusion, crossing line, motion detection |
| Intelligent Identification | Face detection, Defocus, Scene Change |
| Statistical Analysis | People counting |
| 9:16 Corridor Mode | Supported |
| NETWORK | |
| Network Function | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
| GENERAL | |
| Power Supply | DC12V/POE |
| Power Consumption | Max 5.5 W |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
| Protection | IP67 |
| Dimensions | Φ 126 x 94 mm (Ø 5.0” x 3.7”) |
| Weight | 0.45 kg (0.99 lb) |
