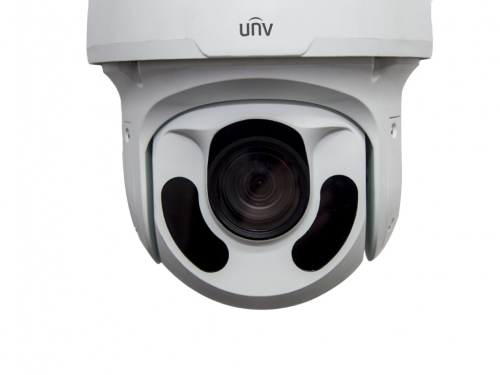

2MP H.265 HD IP PTZ CAMERA 20X ZOOM | UN-IPC6222ERX20PB

SKU: UN-IPC6222ERX20PB
Stock: 100
Price: $699.00
$635.00

Qty: - +
   - OR -

DESCRIPTION

  • 1/3" progressive scan CMOS
  • Up to 1920 × 1080 resolution, 30fps
  • 20x optical zoom (5.2~104mm)
  • Smart IR, up to 150m IR distance
  • Alarm I/O, Audio I/O, ONVIF
  • microSD (up to 128GB)
  • All-weather design
  • AC24V, DC24V, 9~42W
  • IP66, –40°C ~ +65°C
  • (-P) PoE


UN-IPC6222ERX20PB Spec. Sheet
Uniview IPC6222 Quick Start Guide
Uniview IP Cameras User Manual
Uniview IP Cameras Installation Guide

SPECIFICATION

CAMERA
Image Sensor 1/3" 2MP HD CMOS Sensor
Effective Pixels 1920 × 1080
Electronic Shutter Auto/Manual; shutter time: 1/6 s ~ 1/100000 s
Mini. Illumination Color: 0.03 lux (F1.5, AGC ON); 0 lux with IR
S/N Ratio >52dB
Iris Auto/Manual; F1.5 ~ F3.0
CAMERA FEATURES
IR LEDs Super IR LEDs
IR LEDs Distance Up to 150m
Day / Night IR-cut filter with auto switch (ICR)
Evaluative Metering Supported
Privacy Masking Up to 8 areas
Digital Zoom Supported
HLC Supported
WDR Digital WDR
OSD Menu Up to 8 OSDs
VIDEO
Video Compression H.265, H.264, MJPEG
VIDEO & AUDIO
Audio In impedance 35 kΩ; amplitude 2 V [p-p]
Audio Out impedance 600 Ω; amplitude 2 V [p-p]
2-Way Audio Supported
LENS
Angle of View 61.9° (wide) ~ 3.5° (tele)
Focal Lens 5.2 ~ 104 mm (20x optical zoom)
RECORDING
Recording Resolution 2MP ( 1920 × 1080 ), 1.3MP ( 1280 × 960 ), VGA ( 640 × 480 )
Frame Rate (fps) 1080P (1920×1080):Max.30 fps; 720P (1280×720):Max.30 fps; D1 (720×576):Max.30 fps
SPECIAL FEATURES
Behavior Detection Intrusion, crossing line, motion detection
Intelligent Identification Face detection
Statistical Analysis People counting
Exception Detection Audio detection
NETWORK
Ethernet RJ-45 (10/100Base-T)
Protocol L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP 802.1x
Compatibility ONVIF, API
PTZ
Pan / Tilt Range Pan: 360° / Tilt: –15° ~ +90° (auto reverse)
Preset Speed Pan: 300°/s , Speed: 0.1°/s ~ 240°/s / Tilt: 240°/s, Speed: 0.1° ~ 160°/s
Preset 256
Patrol Up to 16 patrols, up to 32 presets per patrol Note: The total number of patrols and patterns is 16.
Pattern Up to 16 patterns, with the total recording time not less 15 minutes per pattern
STORAGE
Storage Micro SD, up to 128 GB
AUXILIARY INTERFACE
Alarm 1/ 1CH
Memory Slot microSD
GENERAL
Power Supply 24 V AC, 24 V DC, PoE (PSE Required)
Working Environment –40°C ~ +65°C (-40°F ~ 149°F), Humidity ≤ 95% RH(non-condensing)
Protection IP66
Dimensions 227 x 359.4 mm (Ø8.9” x 14.2”)
