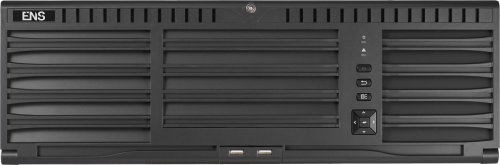

128Channel Enterprise NVR
SKU: SN7A128R-I
Stock: 20
Stock: 20
Price:
$4,100.00
$3,900.00
Features
- New logical and visualized GUI design.
- Adopts professional embedded hardware and software, and pioneering dual-OS design to ensure the reliability of the system running.
- Supports redundant power supply to improve system stability.
- Supports HDD hot swap with RAID0, RAID1, RAID5, RAID 6, and RAID10 storage scheme configurable.
- Either normal or hot spare working mode is configurable to constitute an N+1 hot spare system.
- Up to 32 IP cameras can be connected.
- Supports live view, storage, and playback of the connected camera at up to 12 megapixels resolution.
- H.265+ compression effectively reduces the storage space by up to 75%.
- Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol)
- Simultaneous HDMI 1/VGA output as the main output and the HDMI 2 works as the auxiliary output.
- HDMI and VGA simultaneous outputs by default. Asynchronous outputs are configurable.
- Video outputs at up to 4K (4096×2160) resolution.
- Supports decoding up to 20 channels at 1080p resolution.
- Up to 8 SATA interfaces and 1 eSATA interface provided for HDD connection.
- 10 TB capacity for each HDD.
- HDD health monitoring.
- Supports multiple VCA (Video Content Analytics) events
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Supports VCA search for fire/ship/temperature/temperature difference detection triggered video files
- POS information overlay on live view and playback
- POS triggered recording and alarm
- Hik-Connect for easy network management
- 2 Gigabit Ethernet network interfaces
| Max. Video Channels | 256-ch |
|---|---|
| 2 Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Incoming Bandwidth | 576 Mbps |
| Outgoing Bandwidth | 512 Mbps |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
| Video Interface | HDMI, VGA |
| Audio Out | 1-ch. RCA (2.0 Vp-p, 1 K?) |
| System Compression | H.265, H.265+, H.264, H.264+, MPEG4, MJPEG |
| Video Resolution | Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz |
| Decoding Capability | 3-ch@12 MP (30fps), 5-ch@8 MP (30fps), 6-ch@6 MP (30fps), 10-ch@4 MP (30fps), 20-ch@1080p (30 fps) |
| Playback Channels | 16-ch |
| Internal HDD | 16 SATA interfaces for four 3.5-inch HDDs, Up to 10 TB capacity for each HDD |
| e-SATA | 1 × eSATA interface, 2 × mini SAS interface (optional) |
| Network Interface | 4, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Network Protocol | IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS |
| RS485 | 1 x RS-485 |
| RS232 | 1 x RS-232 |
| USB | Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 |
| Alarm In | 16 |
| Alarm Out | 8 |
| Power Supply | 100 to 240 VAC, 550W |
| Power Consumption | ≤ 140W |
| Working Conditions | 0 °C to + 50 °C (32 °F to 122 °F) |
| Storage Conditions | 0 °C to + 50 °C (32 °F to 122 °F) |
| Dimensions | 442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inch) |
| Weight | ≤ 16 kg (35.3 lb) |
