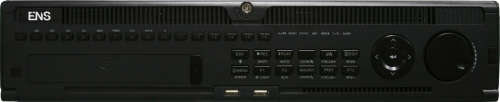

64Channel Enterprise NVR

SKU: SN7864R-I
Stock: 20

Price: $1,550.00

$1,445.00

(0.0 on 0) | Write a review

Overview Reviews Tell a Friend

Features

New logical and visualized GUI design.
Adopts professional embedded hardware and software, and pioneering dual-OS design to ensure the reliability of the system running.
Supports redundant power supply to improve system stability.
Supports HDD hot swap with RAID0, RAID1, RAID5, RAID 6, and RAID10 storage scheme configurable.
Either normal or hot spare working mode is configurable to constitute an N+1 hot spare system.
Up to 32 IP cameras can be connected.
Supports live view, storage, and playback of the connected camera at up to 12 megapixels resolution.
H.265+ compression effectively reduces the storage space by up to 75%.
Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol)
Simultaneous HDMI 1/VGA output as the main output and the HDMI 2 works as the auxiliary output.
HDMI and VGA simultaneous outputs by default. Asynchronous outputs are configurable.
Video outputs at up to 4K (4096×2160) resolution.
Supports decoding up to 20 channels at 1080p resolution.
Up to 8 SATA interfaces and 1 eSATA interface provided for HDD connection.
10 TB capacity for each HDD.
HDD health monitoring.
Supports multiple VCA (Video Content Analytics) events
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Supports VCA search for fire/ship/temperature/temperature difference detection triggered video files
POS information overlay on live view and playback
POS triggered recording and alarm
Hik-Connect for easy network management
2 Gigabit Ethernet network interfaces

Max. Video Channels	64-ch
2 Way Audio	1-ch, RCA (2.0 Vp-p, 1 k Ω)
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	256 Mbps
Recording Resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF
Video Interface	HDMI, VGA
Audio Out	2-ch. RCA (2.0 Vp-p, 1 K?)
System Compression	H.265, H.265+, H.264, H.264+, MPEG4, MJPEG
Video Resolution	4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
Decoding Capability	3-ch@12 MP (30fps), 5-ch@8 MP (30fps), 6-ch@6 MP (30fps), 10-ch@4 MP (30fps), 20-ch@1080p (30 fps)
Playback Channels	16-ch
Internal HDD	8 SATA interfaces for four 3.5-inch HDDs, Up to 10 TB capacity for each HDD
e-SATA	1 × eSATA interface
Network Interface	2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Network Protocol	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
RS485	1 x RS-485
RS232	1 x RS-232
USB	Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In	16
Alarm Out	4
Power Supply	100 to 240 VAC, 50 to 60 Hz
Power Consumption	≤ 140W
Working Conditions	-10 °C to 55 °C (14 °F to 131 °F)
Storage Conditions	-10 °C to 55 °C (14 °F to 131 °F)
Dimensions	445 × 470 ×90 mm (17.5"× 18.5" × 3.5")
Weight	≤ 10 kg (22 lb)

Specification Sheet
