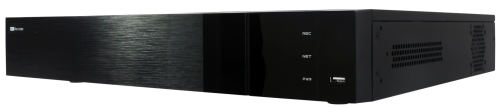

ED8004TSPR | 5MP Titanium 4CH 5-IN-1 Hybrid DVR | Up To 5 IPC

SKU: ED8004TSPR
Stock: 20
Price: $130.00
$105.00

Hard Drive Installed::
Qty: - +
   - OR -

Features

  • 4 CH TVI / CVI / AHD video input
  • 1 x IPC In (Up To 5 IPC)
  • Recording: TVI / AHD : 5MP@10fps; 4MP/3MP@ 15fps, 2MP@30fps
  • Playback: 4CH simultaneously playback; HDMI 1080P output
  • Backup: USB, IE, CMS; support multi-file, file cutting when backup
  • Pentaplex: live, record, playback, backup and remote operation
  • Titanium OS
  • DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
  • Dual stream technology; Multi-user online simultaneously
  • Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
  • Cell phone: iPhone, Android
  • Complete SDK function, easy to integrate with other applications
  • Max HDD: 1 x HDD
System Compression H.264 High profile
Main Processor Embedded Processor
Operating System Embedded Linux
Video Compatibility HD-TVI / AHD / HD-CVI / 960H / IP
Max. Video Channels 5CH
Video Input BNC x 4 (TVI/AHD/CVI/960H)
IP Camera Input IPC x 1 (Max. 5 IPC In)
IPC Resolution 3MP / 2MP / 960P / 720P
IPC Frame Rate 3MP@30fps
Video Interface HDMI/VGA/CVBS(SPOT)
Video Resolution 4MP / 3MP / 2MP / 1.3MP / 1MP / 960H / D1
Multi-Screen Display N/A
OSD Yes
Audio In 4CH, RCA
Audio Out 1CH, RCA
2 Way Audio Take up channel one as an audio input
Recording Resolution 5MP, 4MP, 4MP lite, 3MP,1080P, 720P, WD1
Recording Frame Rate

5MP@10fps,
4MP@15fps,
2MP@30fps

Recording Encode N/A
Recording Quality N/A
Recording Mode Manual,sensor, motion, exception
Recording File Management Lock, Unlock
Playback Channels 4CH
Playback Search Time/Calendar Search, Event (motion)
Playback Smart Search Highlighted date and time to display the channel record
Playback Function Play, Pause, FF, FB; Digital zoom
Alarm In 4CH
Alarm Out 1CH
Alarm Mode Manual, sensor, motion, exception
Trigger Events Record, PTZ move,alarm out,e-mail, etc
Network Bandwidth IPC × 1 / 6Mbps
Network Function TCP/IP?PPPoE?DHCP?DNS?DDNS?UPnP?NTP?SMTP?ONVIF?GB28181
Network Max. Users N/A
Mobile iPhone, Android
Cellphone Function Multi-screen surveillance (for certain model), record, snapshot, PTZ control, save the device list
RS485 RS485 x 1, connect to PTZ or keyboard
USB Rear: 1 x USB2.0, Front: 1 x USB2.0
Remote Connections Optional
Power Supply DC 12V
Power Consumption ?5W (without HDD)
Internal HDD 1 x SATA (up to 8TB capacity for each disk)
e-SATA N/A
Operating Conditions -10~50°C, 10%~90% (Humidity)
Dimensions 11.8" x 9.8" x 2.0" (300 x 248 x 52mm)
