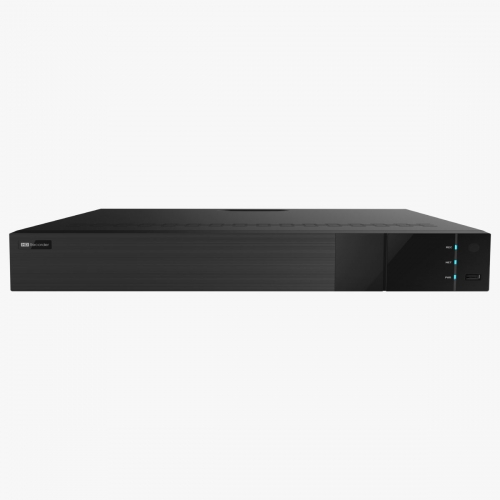

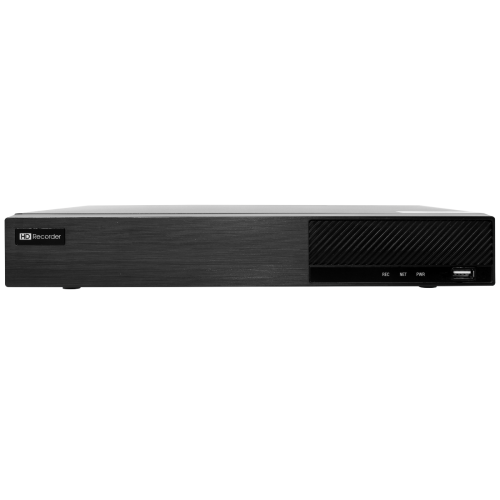

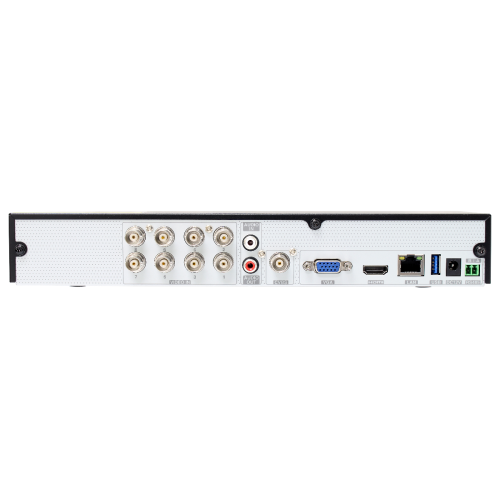

ED8008TSPR | 5MP Titanium 8CH 5-IN-1 HyBrid DVR | Up To 12 IPC
SKU: ED8008TSPR
Stock: 20
Stock: 20
Price:
$175.00
$155.00
Features
- 8 CH TVI / CVI / AHD video input
- Recording: TVI / AHD : 5MP@10fps; 4MP/3MP@ 15fps, 2MP@30fps
- 4 x IPC In (Up To 12)
- Playback: 8CH simultaneously playback; HDMI 1080P output
- Backup: USB, IE, CMS; support multi-file, file cutting when backup
- Pentaplex: live, record, playback, backup and remote operation
- Titanium OS
- DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
- Dual stream technology; Multi-user online simultaneously
- Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
- Cell phone: iPhone, Android
- Complete SDK function, easy to integrate with other applications
- Max HDD: 1 x HDD
Download
| System Compression | H.264 High profile |
|---|---|
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux |
| Video Compatibility | HD-TVI / AHD / HD-CVI / 960H / IP |
| Max. Video Channels | 12CH |
| Video Input | BNC x 8 (TVI/AHD/CVI/960H) |
| IP Camera Input | IPC x 4 (Max.12 IPC In) |
| IPC Resolution | 4MP / 3MP / 1080P / 960P / 720P |
| IPC Frame Rate | 4MP@30fps |
| Video Interface | HDMI/VGA/CVBS(SPOT) |
| Video Resolution | 5MP / 4MP / 4MP lite / 3MP / 1080P / 720P / WD1 |
| Multi-Screen Display | N/A |
| OSD | Yes |
| Audio In | No |
| Audio Out | No |
| 2 Way Audio | Take up channel one as an audio input |
| Recording Resolution | 5MP, 4MP, 4MP lite, 3MP,1080P, 720P, WD1 |
| Recording Frame Rate |
5MP@10fps, |
| Recording Encode | N/A |
| Recording Quality | N/A |
| Recording Mode | Manual,sensor, motion, exception |
| Recording File Management | Lock, Unlock |
| Playback Channels | 8CH |
| Playback Search | Time/Calendar Search, Event (motion) |
| Playback Smart Search | Highlighted date and time to display the channel record |
| Playback Function | Play, Pause, FF, FB; Digital zoom |
| Alarm In | 4CH |
| Alarm Out | 1CH |
| Alarm Mode | Manual, sensor, motion, exception |
| Trigger Events | Record, PTZ move,alarm out,e-mail, etc |
| Network Bandwidth | IPC × 4 / 24Mbps |
| Network Function | TCP/IP?PPPoE?DHCP?DNS?DDNS?UPnP?NTP?SMTP?ONVIF?GB28181 |
| Network Max. Users | N/A |
| Mobile | iPhone, Android |
| Cellphone Function | Multi-screen surveillance (for certain model), record, snapshot, PTZ control, save the device list |
| RS485 | RS485 x 1, connect to PTZ or keyboard |
| USB | Rear: 1 x USB3.0, Front: 1 x USB2.0 |
| Remote Connections | Optional |
| Power Supply | DC 12V |
| Power Consumption | ?10W (without HDD) |
| Internal HDD | 1 x SATA (up to 8TB capacity for each disk) |
| e-SATA | N/A |
| Operating Conditions | -10~50°C, 10%~90% (Humidity) |
| Dimensions | 11.8" x 9.8" x 2.0" (300 x 248 x 52mm) |
Currently there are no reviews for this product. Share your opinion with others, be the first to write a review.
